The question of whether life exists in other parts of the Universe is important and unanswered. The 1952 Miller–Urey experiment (S. L. Miller 1953; S. L. Miller & H. C. Urey 1959) demonstrated the possibility of abiotic production of the molecular components of living systems. The detection of amino acids in meteorites (B. K. D. Pearce & R. E. Pudritz 2015) and prebiotic molecules in interstellar space (S. Zeng et al. 2019; V. M. Rivilla et al. 2023) showed that such processes are possible even outside a planetary atmosphere.

The direct detection of living organisms outside the solar system remains unlikely in the near future. A more likely scenario is an indirect detection, such as an atmospheric biosignature: a compound released into the atmosphere by biological processes. However, such compounds may also have an abiogenic source, so whether such a detection indicates life is uncertain (R. W. Court & M. A. Sephton 2012; A. Tokadjian et al. 2024).

Detection of intelligence would provide more certain evidence of life. An extraterrestrial intelligence (ETI) could create artifacts, signals, or processes that are detectable at interstellar distances and have no natural counterpart. Such processes could be a form of radiation (electromagnetic, particle, or gravitational) or a physical artifact (a spacecraft or object passing through or remaining in the solar system, a structure detectable at interstellar distance, or an atmospheric component that only has a technological means of production). These are collectively known as technosignatures (J. Haqq-Misra 2024).

Due to the relative ease of creating and detecting radio waves and the relative transparency of atmospheres and interstellar space to such waves, radio has been proposed as a means of detecting extraterrestrial intelligence (G. Cocconi & P. Morrison 1959). Two primary approaches have been used for such searches: sky surveys cover a large fraction of the solid angle of the entire sky, and targeted searches focus on individual stars or galaxies (F. D. Drake 1974). Such searches have been collectively known as the Search for Extraterrestrial Intelligence (SETI).

Several targeted searches have been performed, including OZMA and OZMA II at Green Bank (F. D. Drake 1960, 1986; C. Sagan & F. Drake 1975; R. H. Gray 2021), Phoenix at the Arecibo Observatory (P. R. Backus & Project Phoenix Team 2002) and at the Allen Telescope Array (ATA), and the Breakthrough Listen projects at the Parkes and Green Bank observatories (J. E. Enriquez et al. 2017; D. C. Price et al. 2020). Recently, Breakthrough Listen has begun to observe targets at the Very Large Array (C. D. Tremblay et al. 2024) and MeerKAT (D. Czech et al. 2021). In addition, observations of multiple targets have been made at the FAST observatory in China (X.-H. Luan et al. 2023) and the ATA (N. Tusay et al. 2024).

There have also been a number of sky surveys. Some have operated commensally, collecting data from a telescope while its pointing was being controlled by other projects. These include searches using various generations of the SERENDIP spectrometer at the Hat Creek and Green Bank observatories (D. Werthimer et al. 1988) and at the Arecibo observatory (J. Cobb et al. 2000; S. Bowyer et al. 2016). Other sky surveys used dedicated telescopes. These include the early Ohio State project and its “Wow!” signal (J. D. Kraus 1977), the “Fly’s Eye” project (A. P. V. Siemion et al. 2012), and a brief survey of the antisolar point (E. Hort et al. 2024) at the ATA.

To date, no repeatable detections of interstellar technosignatures have been made.

Because there are no known sources of narrowband emissions, radio SETI searches have typically searched for narrowband signals. The frequency range and the number and width of channels have been limited by available technology. The first searches used existing instruments with channel widths from 100 Hz to tens of kHz (F. D. Drake 1960; J. D. Kraus 1977; S. Bowyer et al. 1980). As technology progressed, special purpose SETI spectrometers were developed that used Fourier transform processors, programmable gate arrays, and GPUs (D. Werthimer et al. 1995; A. Siemion et al. 2011; K. Archer et al. 2016). The frequency range of these spectrometers increased from kHz to GHz, while channel widths decreased to ∼1 Hz, enlarging search space coverage and improving sensitivity. As will be discussed in Section 2.1, further reduction in channel bandwidth requires correction for Doppler effects.

SETI@home is a radio SETI project, which searched for several types of signals in recorded data. Most of this data was recorded commensally at the Arecibo observatory over a 22 yr period. Other data from the Parkes and Green Bank observatories was provided by Breakthrough Listen (M. Lebofsky et al. 2019). The first stage of data analysis finds detections: brief and statistically unlikely excesses of continuous or pulsed narrowband power. The second stage, described in D. P. Anderson et al. (2025), removes radio frequency interference (RFI) and identifies and ranks the target signal candidates (see Figure 1).

Most radio SETI projects process data in near real-time using special purpose analyzers at the telescope. SETI@home takes a different approach. It records digital time-domain (also called baseband) data, and distributes it over the internet to large numbers of computers that process the data, using both CPUs and GPUs.

This approach requires recording and storing an amount of data proportional to the frequency range we cover, and transmitting this data through home internet connections. These factors impose performance constraints that allow us to examine only a relatively narrow frequency range (2.5 MHz).

However, the approach provides a large amount of computing power (roughly ∼10¹⁵ floating-point operations per second (FPOP s^–1)) with which to analyze this data. We use this in several ways to increase the sensitivity and generality of our search. First, we use coherent integration, a technique in which data is transformed so that the power of drifting signals is confined to a single discrete Fourier transform (DFT) bin. We perform this coherent search over 123,000 Doppler drift rates in the range ±100 Hz s⁻¹. Second, we search for a variety of signal types, such as pulsed signals (using a fast-folding algorithm) and repeated nonsinusoidal waveforms through autocorrelation of the time-domain data).

Third, the analysis uses a range of 15 DFT sizes, with frequency resolutions ranging from 0.075 Hz (13.4 s) to 1221 Hz (8.1 × 10⁻³ s). The longest DFT length was chosen to be the best power-of-two match to the most common observation length (13.7 s, or one beamwidth at sidereal rate), while the shortest was chosen to be the widest power-of-two frequency bin that would not be affected by removal of natural H i line emission; see Section 5.2.

The parameters of SETI@home at Arecibo are summarized in Table 1. Parameters for observations made at other observatories will be provided in future publications related to those observations.

This paper is organized as follows. Section 2 describes the types and range of target signals that SETI@home is looking for. Section 3 discusses the way we record, store, and distribute time-domain data. Section 4 describes the types of detections (momentary signals) that we look for, how we find them, and how we assign scores to them. Section 5 describes the data analysis algorithm and the sensitivity it achieves. Section 6 describes how we tested the application using both simulated and real data. Section 7 discusses the use of volunteer computing. Section 8 compares SETI@home to related projects, and Section 9 gives conclusions and discusses possible future work.

SETI@home is licensed under the General Public License (GPL). The SETI@home source code, written in C++, is available at https://sourceforge.net/projects/seti-boinc/. The source code for the simulated data generator described in Section 6 is located in the tools subdirectory of this repository. The source code for the software radar blanker is available at https://sourceforge.net/projects/seti-science/ in the "software_blanking" subdirectory. SETI@home also uses the “setilib” library available at https://sourceforge.net/projects/setilib/.

The frequency at which a telescope receives a signal is Doppler-shifted by the velocity components of both transmitter and receiver in the direction of the signal path. In this section, we use specific values related to data collected using the SETI@home data recorder at Arecibo, where the majority of the observations analyzed by SETI@home were conducted. The shift due to receiver motion, and the time derivative of the shift, are known; they correspond to the various accelerations of the receiver’s reference frame, due primarily to the Earth’s rotation and orbit. We can apply corrections that shift a received frequency to the frequency that would be observed at the Galactic barycenter, which can be considered an inertial frame over the times scales of the observations; see G. H. Kaplan (2005) and references therein. The maximum velocity difference between the receiver and this frame is ±29.9 km s⁻¹, corresponding to a frequency shift of ±142 kHz at 1.42 GHz.

However, we do not know if the transmitter is applying a similar correction to the transmission frequency. If a signal is intended as a beacon and is directional, it could be corrected for the accelerations of the transmitter to present a stable frequency for the observer. We refer to such corrected signals as barycentric because they will be at a constant frequency in the frame of the barycenter of the solar system. After the receiver Doppler correction is applied, these signals will appear at a nearly constant frequency.

Because the correction applied to a transmitted signal depends on the direction of the receiver, leakage signals or omnidirectional beacons are unlikely to be corrected in this manner. Such signals would have a Doppler shift corresponding to the radial velocity of the transmitter. We call such signals nonbarycentric, as they would not be frequency stable in the barycentric frame. After correction for the receiver Doppler shift, they will still appear to be varying in frequency.

The ranges of the sender Doppler shift and its derivative (Doppler drift rate) depend on the movements of the transmitter. We look for target signals for which these ranges are consistent with certain assumptions about the movements of the transmitter, such as the rotational rate of planetary transmitters; see Section 5.1.

During propagation through the interstellar medium, signals of nonzero bandwidth become dispersed due to interaction with free electrons. The amount of this dispersion depends upon the amount of ionized material through which the signal propagates. The total differential delay between the lowest- and highest-frequency components of the signal is

where DM is the dispersion measure, defined as the electron column density between the transmitter and receiver: , expressed in units of pc cm⁻³ (D. R. Lorimer & M. Kramer 2012). As the typical interstellar electron density in the Galactic plane is n_e ∼ 0.08 cm⁻³ (J. H. Taylor & J. M. Cordes 1993), Galactic DM is DM_G ≲ 8D[kpc] where D[kpc] is the transmitter-receiver distance in kiloparsecs; therefore, a 10 kpc range would lead to a 〈DM〉 ≲ 800 pc cm⁻³. The median DM of known Galactic pulsars is ∼140 pc cm⁻³ (R. N. Manchester et al. 2005; https://www.atnf.csiro.au/research/pulsar/psrcat), which is likely due to the scale height of pulsars placing them above or below the Galactic plane, and to a detection bias selecting for nearby pulsars. To prevent receivers from needing to correct for dispersion for a DM of 800 pc cm⁻³, an ETI might choose to send a ΔνΔt ∼ 1 beacon with bandwidth

Because SETI@home only considers signal bandwidths Δν ≤ 1221 Hz, dispersion is unimportant to the analysis. The limiting dispersion measure for a signal at 1.42 GHz with 1221 Hz bandwidth is DM < 2.3 × 10⁵ pc cm⁻³, well above the DM of any known Galactic pulsar.

To study the case where dispersion is important, we operated a sister project, Astropulse, using the same data source and volunteer computing infrastructure as SETI@home. Astropulse looked for single and repeated broadband pulses, with many possible origins including both technosignatures and astrophysical phenomena such as black hole evaporation and pulsars. Astropulse workunits included the full 2.5 MHz band, and it looked for pulses in the dispersion measure range 49.5 pc cm⁻³ ≤ ∣DM∣ ≤ 830 pc cm⁻³ using coherent de-dispersion. Astropulse is described in J. Von Korff et al. (2013).

Before 2006, SETI@home obtained data from an L-band flat feed mounted on a carriage house opposite the Arecibo Gregorian reflector dome.

After the 2006 installation of the 7-beam Arecibo L-band feed array (ALFA), SETI@home used ALFA as its data source. ALFA is an array of seven receivers arranged in a hexagonal pattern with one in the middle, which was mounted in the Gregorian dome. SETI@home made its observations commensally, in conjunction with other uses of the ALFA array. Over the course of the project, the array was used to search for pulsars near the plane of the Galaxy, to map the distribution of hydrogen in all parts of the Galaxy visible from Arecibo, and to search for extragalactic hydrogen gas in isolated clouds or in nearby galaxies. This resulted in three main modes of observation. The pulsar surveys tended to track positions in the sky for 30 s to tens of minutes while accumulating data. The other surveys used either a drift scan mode, in which the receivers are held in position while objects in the sky drifted through telescope beams due to the earth’s rotation, or a “basket-weave” mode in which the receiver tracked north and south while the sky drifted by, resulting in a zigzag path (J. E. G. Peek et al. 2011).

If the primary feed was stationary, objects in the sky passed through the beam of one of the ALFA receivers (005) at the sidereal rate. An object would require ∼13 s to transit the field. When used in basket-weave mode, less time was required for transit. When tracking, objects could remain in the field of view for a long duration, up to a possible maximum of ∼4 hr.

Using the ALFA receiver, the telescope could view declinations between −2° and 38°, or about 25% of the sky. Our observations covered almost this entire area, most of it multiple times; see D. P. Anderson et al. (2025).

The SETI@home data recorder recorded a 2.5 MHz band from each of the two linear polarizations of the seven receivers (14 data streams in all) centered at 1.42 GHz near the H i hyperfine transition at 1.4204 GHz. We chose the hydrogen line because it is considered to be a likely frequency for deliberate transmissions. Extraterrestrial astronomers who are aware of the H i transition are likely to use it to survey the structure of the galaxy. The potentially large number of observers makes this frequency a good choice for transmissions designed to attract attention.

The 14 analog signals from ALFA's seven receivers were simultaneously fed into several different instruments including spectrometers, pulsar and fast radio burst search machines, as well as the SETI@home data recorder. This allowed several different experiments to observe the sky simultaneously. The front-end electronics down-converted the analog signal, extracted the 2.5 MHz band centered at 1.42 GHz, and converted the signals to complex baseband. Each of the 14 complex baseband signals was recorded at 2.5 Msps, with each sample being a 2-bit complex number (one bit real and one bit imaginary), along with the observatory radar blanking signal. The data was recorded continuously onto hot-swappable disk drives. The disk drives were physically shipped to Berkeley for analysis. This raw data (about 1 petabyte) is archived at the National Energy Research Scientific Computing Center at the Lawrence Berkeley Laboratory.

3.1.1. Radar Blanking

A splitter program divides the data from each receiver polarization channel into 256 frequency subbands of about 9.766 kHz each and lengths of 2²⁰ samples (107.37 s in duration). We call these segments workunits. Early versions of the splitter used 2048-point forward/8-point inverse DFT filtering to break the band up into 256 sharply defined subbands. Later versions used a polyphase filter bank to improve out-of-band rejection. Originally, the workunits were resampled to 2-bit complex for compactness, but as typical internet bandwidth increased, this was changed to 4-bit complex samples in order to reduce quantization losses (L. Kogan 1998).

Sequential workunits of a given subband are overlapped in time by approximately 20 s so that the typical longest features of interest—13 s or so—are always contained entirely within at least one workunit.

Each workunit included a data header containing all of the parameters used by the SETI@home client application. This includes the time as Julian date, the parameters of the telescope (name, astronomical, and geodetic location), the receiver system (frequency, bandwidth), the splitting method (workunit bandwidth, number of samples per workunit, center frequency, and other parameters necessary to determine the frequency of a signal within a workunit), and celestial coordinates of the beam center throughout the duration of the workunit.

The data itself could be output in any of the encodings and bit-widths supported by the SETI@home application. Complex samples with power-of-two sizes from 2-bits to 16-bits were supported by default. Typically, SETI@home used a base64-like encoding, but SETI@home also supports binary, multiple XML encoding forms, base64, base85, CSV, quoted-printable, and hexidecimal, in addition to ASCII floating-point.

SETI@home was designed to be agnostic to the source of the data to the extent possible. Over the course of the project, baseband data was also collected by the Breakthrough Listen project at both the 64 m Parkes Telescope and 100 m Green Bank Telescope (GBT) and analyzed by SETI@home. Tests of data from LOFAR and the 25 m Dwingeloo telescope were also conducted, but this data was not widely distributed, and the results were not inserted into the SETI@home database. Reobservations of candidates are being conducted at the FAST observatory, and this data will be analyzed using the SETI@home client. Some amateur radio astronomers have extended SETI@home to common recording formats including lossless audio formats such as .WAV or .FLAC and binary formats used by GNUradio. Such extensions are not included in the official repository.

Each spectrum generated by the DFT is examined for bins with power above a threshold. This threshold is 24 times the mean power in that spectrum, which, given complex data with a random Gaussian distribution, results in an e⁻²⁴ probability that a single bin exceeds the threshold.¹ This threshold was chosen because it usually results in ∼ a few detections in each workunit of actual data. Detections above this threshold, including their parameters such as position, frequency, channel bandwidth, and Doppler drift rate are returned by the client.

The power in an individual spectral bin is a magnitude of a complex number, so the power distribution per bin can be represented as χ² distribution with 2 degrees of freedom (DOF). Hence, we define the detection probability score for a spike D as

where Q is the complementary incomplete gamma function, P(D) is the spike power, and 〈P〉 is the frequency averaged power in the DFT.

If the telescope beam is moving with sufficient speed across the sky, a signal would be visible in that beam for less than the duration of the workunit. As the beam passes over the signal, its detected power in a PvT array would match the sensitivity profile of the beam, which, for constant motion, is nearly Gaussian in shape.

The client performs Gaussian fitting on each PvT array if the time resolution is sufficient (), and if the angle traversed, θ, is sufficient for both the Gaussian shape and a background level to be determined (4.5 beamwidths < θ < 22.5 beamwidths). Because the rate of motion is known, the σ width of the Gaussian is a known quantity, but it varies between workunits depending on the rate of telescope motion. If the telescope beam is moving too slowly across the sky (<4.5 beamwidths per workunit) or too rapidly (>22.5 beamwidths per workunit), Gaussian fitting is not performed.

The client rebins the PvT array for the channel by coadding adjacent time bins to obtain a 64 element array, which is used for the subsequent step. A 64-point array was chosen to limit the size of the array used for the Gaussian fit, resulting in faster run times. It also led to a similar analysis regardless of DFT length, reducing the complexity of post-processing.

First, this rebinned array is searched to see if there is a bin with power greater than 3 times the mean power of the array. If not, the search for this array is abandoned.

The client then loops through each of the 64 elements of the array, presuming the peak location to be at that element, and determines the background level using the array elements that are farther than 2σ from the peak location. The best-fit peak amplitude is determined for each element. The client determines the reduced χ² value for this two-parameter (peak level, peak position, DOF = 62) and non-Gaussian invariant background (1 parameter, DOF = 63). The threshold conditions are reduced χ² of the Gaussian fit and reduced χ² of the no-Gaussian fit of . A fit that meets these thresholds is reported, as is the 64 element array, as unsigned 8 bit values renormalized to a maximum of 255.

Because the reduced χ² probability of the Gaussian fit is always near 1 due to the threshold applied, we define the probability score of a Gaussian D to be

A folding algorithm divides a time series into segments of duration equal to the period p being searched, and coadds them in order to improve the signal-to-noise ratio for pulses of that period. The folding algorithm used in SETI@home is a departure from the standard fast-folding algorithm (FFA; D. H. Staelin 1969). Typical home computer systems at the time the algorithm was developed had small data caches (32–256 kiB). A cache miss typically resulted in tens to hundreds of CPU cycles waiting for memory access, whereas a floating-point addition would typically complete in one or two cycles. We found that the standard FFA did not perform well on small-cache machines, and we implemented a folding algorithm with the goal of fitting the working set into cache as quickly as possible, at the cost of additional floating-point additions. The benefit of this method, relative to the standard FFA, may not have lasted for more than one generation of microprocessors as larger multilevel caches became the norm.

The client passes the folding algorithm a segment of a PvT array of length (N) equivalent to the half-power beam crossing time or 40,960 time samples, whichever is smaller. The 40,960 sample limit is chosen so that the maximum size of the array following the first fold (N/3) will be 64 kiB or less. Subsequent segments are overlapped by 50% of the array length to ensure maximum sensitivity. The folding algorithm divides this segment into three equal parts and coadds the data (period ). The algorithm searches the coadded data for any peaks above a dynamically computed threshold. The coadded data is further divided into two, and again coadded () and searched for above-threshold events. This process of halving the period is repeated until a period of two samples is reached.

The algorithm then returns to the original data segment and again divides the data into three, this time with the upper endpoint of the divided arrays shifted downward by one sample to achieve , and the folding process is repeated. Once is reached, the entire segment is again searched, this time folded by four with endpoint shifts until is reached. This repeats for to .

This results in the following periods being searched

For the longest segment used (40,960 samples), 321,611 periods between two and 13653.3 samples are searched. For the shortest DFT used (8), this corresponds to periods between 0.82 ms and 11.2 s. Periods searched at longer DFT lengths are proportionally longer, with the longest periods becoming limited by either the beam crossing time or the duration of the workunit. The periods searched are roughly uniform in logarithmic space, with a fractional spacing approaching .

In principle, further periods missed in this search could be examined. The primary benefit of this would be increased sensitivity to pulses at these missed periods with pulse duration that is small compared to the duration of a single sample. However, this would be of limited benefit because the SETI@home client’s baseline smoothing removes any signal with a bandwidth greater than 2 kHz or, equivalently, of duration <0.5 ms (Section 5.2).

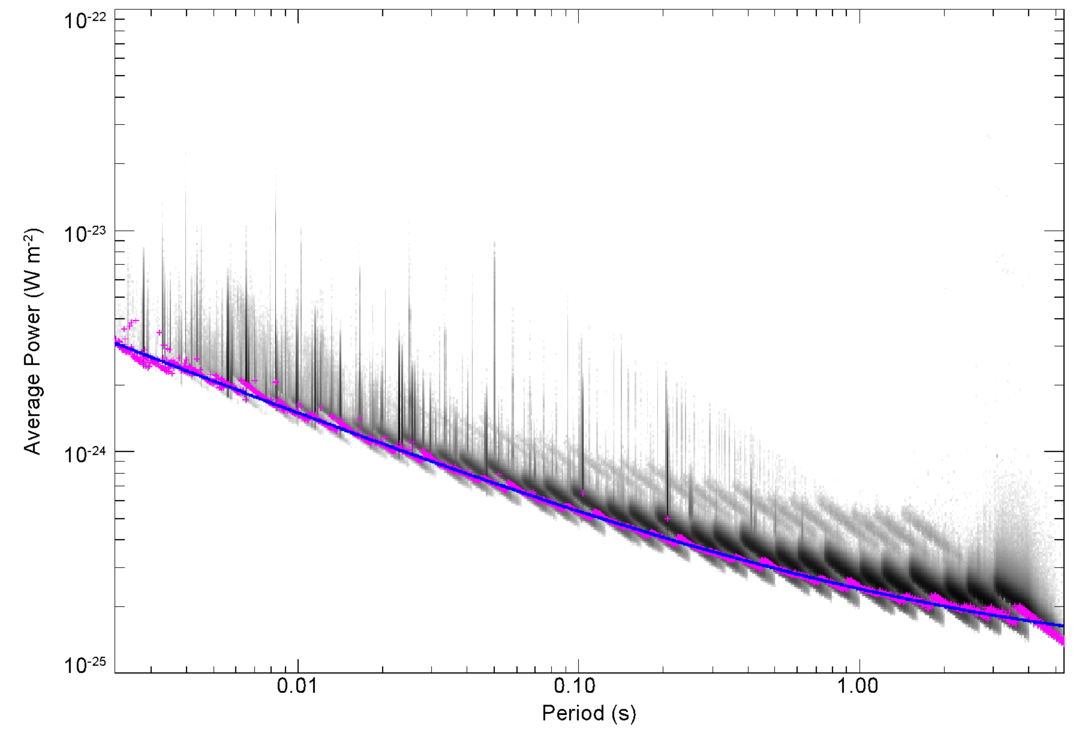

The probability that a time sample D exceeds a power threshold T in a noiselike input array of length N = mn that has been folded n times to length m is

where is the pulse power relative to the mean power in the folded array. To obtain an equal probability of a false alarm in any element of the folded array regardless of the length of the folded array, we chose a constant threshold of .

Therefore, we define the pulse probability score

Because the length of the searched array (and therefore the number of periods searched) depends upon the rate of motion of the telescope, a variable power threshold is used to achieve a false-alarm rate of one detection per workunit.

The approximate number of power bins searched per workunit is

where is the rate of motion of the field of view, and is the sidereal rate. In order to obtain a single pulse due to random noise in a standard sidereal rate workunit, we use a motion corrected threshold of

where is the threshold at the sidereal rate, computed to result in an average of one detection in a noiselike workunit.

A triplet is defined as three events above a threshold evenly spaced in time. J. W. Dreher (2000, private communication) suggested to us a simple and efficient method for finding evenly spaced pulses in the data. Like pulse finding, triplet finding operates on a Doppler-corrected, single-frequency, power versus time array. The array is thresholded at a multiple of the mean noise power, and if two or more bins are above a threshold, the bins at the midpoint between each pair of above-threshold bins are checked to see if they are also above a threshold. In principle, the midpoint threshold could be different from the basic threshold. However, in practice, we found very little difference in overall sensitivity resulting from lowering the midpoint threshold.

The triplet finding algorithm uses as input the same PvT array segments as the pulse finding algorithm sized to match the beam crossing time with subsequent segments overlapping by 50% to maximize the likelihood that a triplet will be contained completely within a segment. Because the number of segments searched depends on the telescope motion, we modify the threshold based on the number of unique possible triplets in a workunit, resulting in a threshold . This gives a false-alarm probability of about one per workunit regardless of the telescope motion. The triplet power threshold for workunits acquired when the telescope was moving at the sidereal rate was approximately 9.0×  the mean noise power.

As expected from its construction from three spike-like signals, each with 2 degrees of freedom, the distribution of triplets in noiselike data is well described by a χ² distribution with 6 degrees of freedom. Therefore, we define the probability score of a triplet, D, as

where is the average power of the triplet peaks as a multiple of the mean noise power.

G. R. Harp et al. (2011) proposed that an extraterrestrial civilization could send a beacon that contains information (and therefore has an appreciable bandwidth) but is easily detectable. This could be done by sending a signal and then, after a short delay, starting the broadcast of a copy of the signal. A signal of this type can be detected by autocorrelation, which will show a peak power at the given delay. Once the delay is known, the information within the signal can, in principle, be recovered.

The client contains an autocorrelation detector that examines delays up to ±64ki samples (±6.7 s). Following the generation of a power spectrum using a 128ki-point DFT, the client performs a 128 ki point inverse transform to compute the autocorrelation. The autocorrelation function is implemented as

where x(t) is the complex time series of the input data. P(ν) is the 128 ki point power spectrum used to search for spikes in the 128 ki point DFT. Because this inverse transform operates on the power spectrum (i.e., the magnitude of the complex spectrum), it cannot distinguish between positive and negative delays.

The threshold used for autocorrelation detection is 17.8 times the mean noise power (following the autocorrelation step). As with spikes, Gaussian noise will result in a χ² distribution with 2 degrees of freedom, and therefore, we use the same probability score:

When searching for narrowband signals, it is best to use a narrow search window (or channel) around a given topocentric frequency. The wider the channel, the more broadband noise is included in addition to any signal. This broadband noise limits the sensitivity of the system. Most recent radio SETI spectrometers have channel widths between 0.5 and 3.0 Hz (J. Chennamangalam et al. 2017; M. Lebofsky et al. 2019; Z.-S. Zhang et al. 2020).

However, there are limitations to the use of narrow frequency channels. One limitation is that extraterrestrial signals are likely to vary in topocentric frequency because of accelerations of the transmitter and receiver. For example, a receiver located on the surface of Earth undergoes an acceleration of up to 3.4 cm s⁻² due to Earth’s rotation. At 1.4 GHz, this corresponds to a Doppler drift rate of −0.16 Hz s⁻¹. If not corrected for this drift, a transmission at a constant frequency in an inertial frame would move outside of a 1 Hz channel in about 6 s, limiting the maximum coherent integration time to 6 s. Because of the inverse relationship between maximum frequency resolution and integration time () the frequency resolution that can be effectively used without correcting the received signal for this acceleration is limited to Δν ∼ 0.4 Hz.

In principle, a correction can be made for most of the drift due to motions of the earth, but how does one correct for motions of a transmitter on or orbiting an unknown planet? A transmitter beaming signals directly at Earth could correct the outgoing signal for the motions of the transmitter, but making such an adjustment with an omnidirectional beacon is difficult. Therefore, to search for this type of signal at very narrow bandwidth (≪1 Hz) and with the highest possible sensitivity, the correction for Doppler drift must be made at the receiving end. A search for such signals must be performed at multiple Doppler drift rates.

It is possible to perform a search for drifting signals using incoherent drift correction. However, the drift of signals from a frequency channel limits the lossless drift rate to less than , where Δν_DFT is the DFT resolution, and Δt_int is the integration time. This is equal to when a single DFT is considered. Therefore, a typical 1 Hz spectrometer begins to lose sensitivity to signals at drift rates >1 Hz s⁻¹. Spectrometers that sum multiple DFTs into a single spectrum, such as Breakthrough Listen, have the disadvantage of larger Δt_int and a correspondingly smaller lossless drift range (J.-L. Margot et al. 2021).

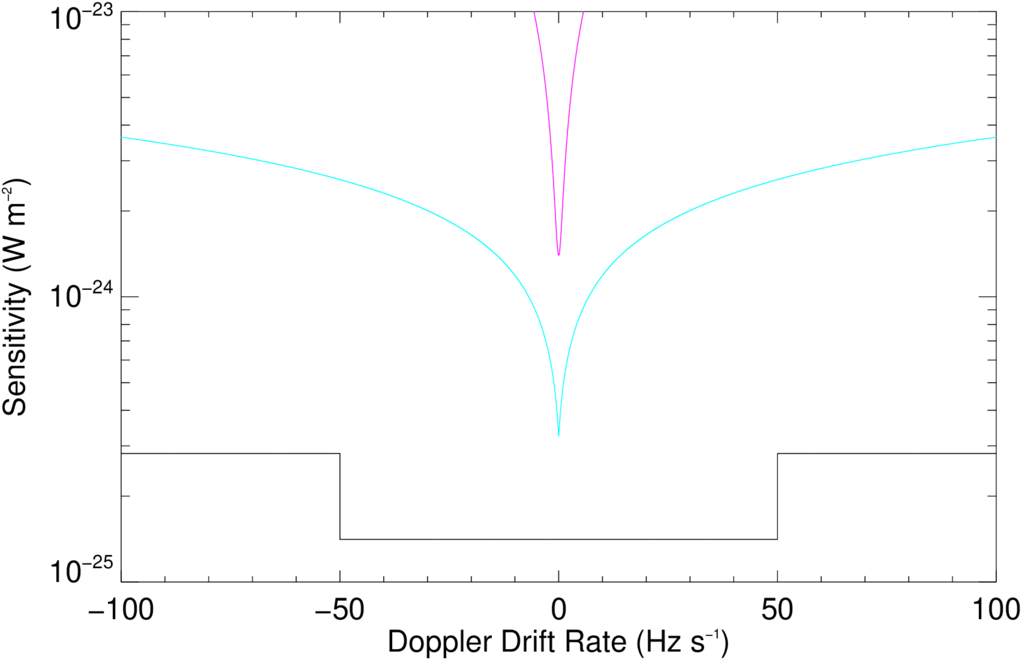

The SETI@home client performs its most sensitive search of the data for signals at drift rates below ±50 Hz s⁻¹ (accelerations expected on a rapidly rotating planet) in steps as small as 0.0009 . This drift rate step is chosen to limit the drift to within a frequency channel over the course of a maximum signal integration time.

The client examines the data at Doppler drift rates out to ±100 Hz s⁻¹ (accelerations of the magnitude that would arise from a satellite in low orbit about a super-Earth), but at a more coarse step of 0.015 Hz s⁻¹. This results in a lower overall sensitivity at these larger drift rates. In total, as many as 123,000 drift rates are searched in a given workunit.

A signal from a transmitter located on a rotating alien planet would be most likely to have a negative drift rate, as the accelerations involved would be away from the observer. Positive drift rates could result if a transmitter is in orbit about a planet or star that leaves the transmitter visible while it is being accelerated toward the observer. Therefore, we examine both positive and negative drift rates. This also leaves open the possibility of detecting a extraterrestrial signal that is transmitted with varying frequency.

When reporting signals of all types, we report topocentric drift rates. Corrections of drift rate or frequency to the barycenter are performed in post-processing (see D. P. Anderson et al. 2025).

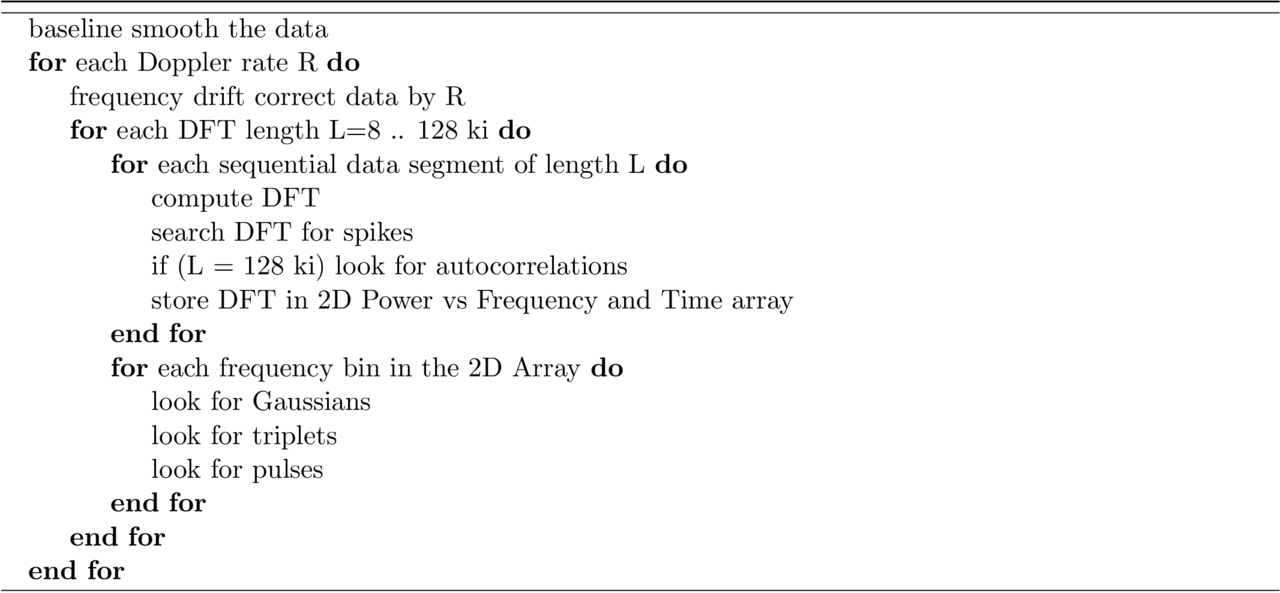

The SETI@home client algorithm is summarized in Figure 2. To analyze a workunit, the client first performs a baseline smoothing on the data to remove any wideband (Δν > 2 kHz) features. Because the H i line is often within the recorded band, a value was chosen that will remove even the narrowest H i feature, H i neutral self-absorption (HINSA), which can have line widths as low as ∼0.5 km s⁻¹ or 2.4 kHz (P. F. Goldsmith & D. Li 2005). This prevents the client from confusing fluctuations in broadband noise (due in part to variations in the hydrogen line emission as the field of view transits the sky) with ETI signals.

The baseline smoothed is performed on chunks of 32 ki complex data points. A 32 ki point power spectrum is computed, and each input point is normalized to the mean power in a 2 ki point boxcar around the point.

The client then loops over a range of Doppler drift rates as described in the previous section. At each Doppler drift rate, power versus time and frequency data cubes are built using DFT of power of 2 lengths, 2³ ≤ L_DFT ≤ 2¹⁷ samples; these result in channel bandwidths of 1221–0.075 Hz. To avoid redundant work, a data cube for a given DFT length is only created when the Doppler drift has changed by an amount that is significant when compared to 1/Δν². Therefore, the highest spectral resolution cubes are generated 4 times as frequently as the next higher spectral resolution. In the following, we will refer to a single time row, at all frequencies, of a data cube as a power spectrum, and the time series in a single frequency bin as power versus time or PvT.

The general Doppler drift correction method creates a reference signal, x_ref, with the desired rate of frequency drift, , sampled at the same rate as the data

This reference signal is mixed with (i.e., multiplied with the conjugate of) the data, x, to derive the drift corrected data

The signal is corrected incrementally from one drift rate to the next, to limit the recalculation of x_ref. We compute () in the exponent incrementally to avoid errors due to large sin and cos arguments.

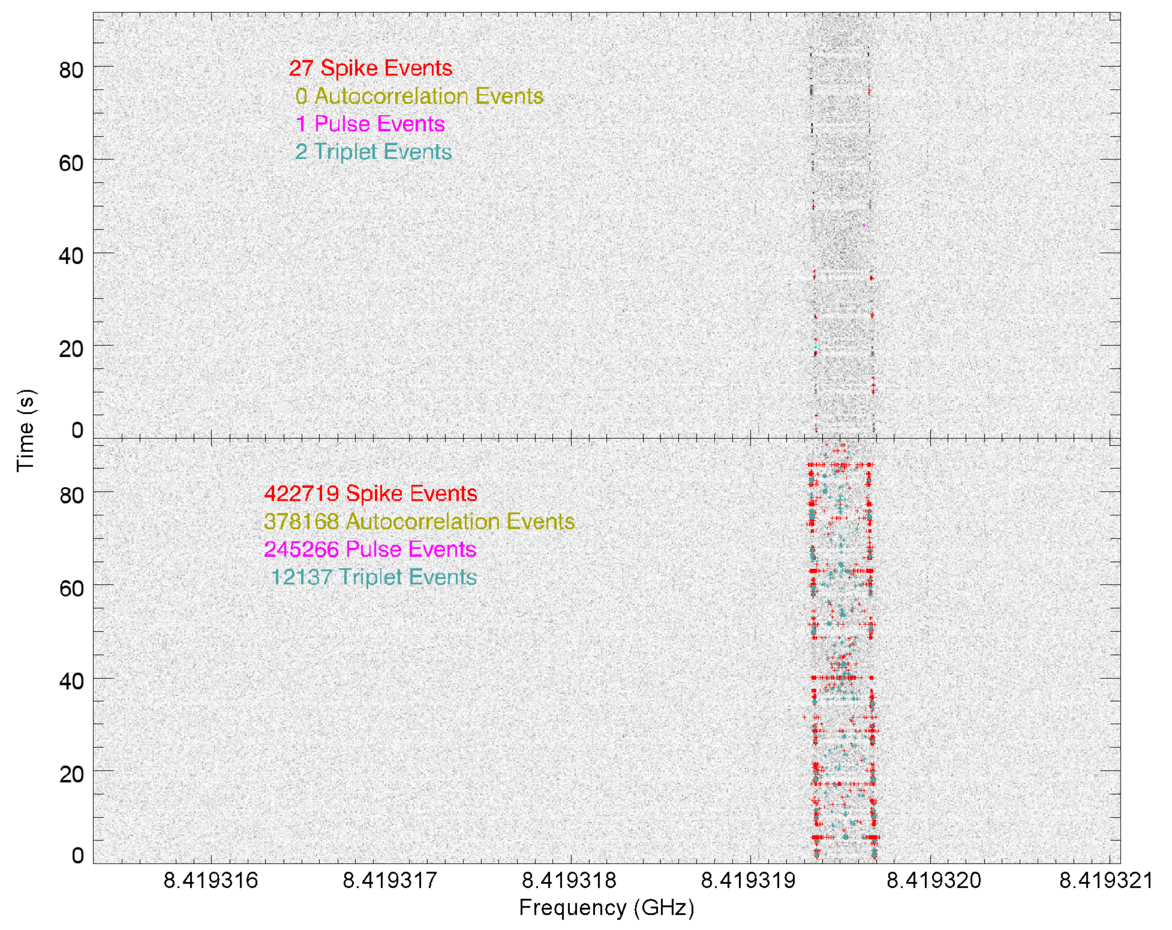

A workunit containing strong RFI can result in a large number of detections. We determined through observation of early results that the vast majority of workunits containing more than eight spikes or 30 total detections were contaminated with strong RFI. To avoid filling the database with these, we limit the number of detections returned per workunit to eight spikes and 30 total detections. If either limit is exceeded, the computation is aborted, and the detections found up to that point are returned. A median of 3% of workunits resulted in this type of overload, although at times of high interference, the fraction of overloads could reach 30%.

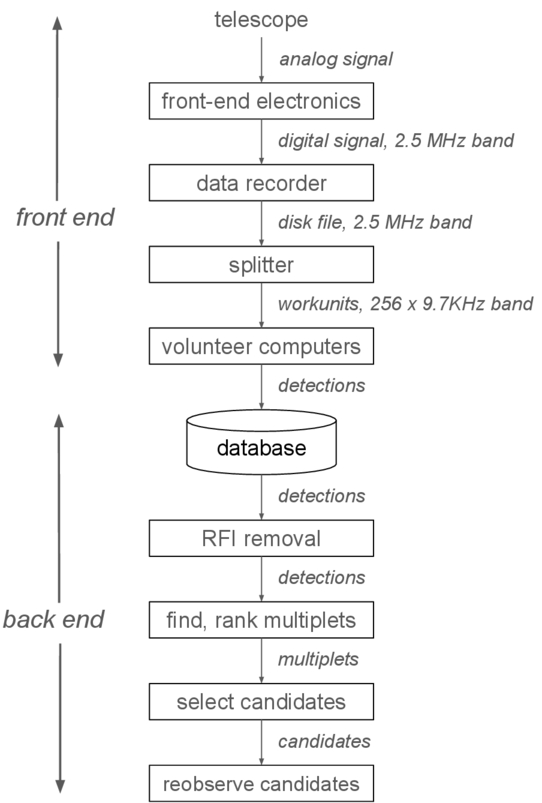

Most radio SETI projects share the same general structure: a front end that computes DFTs of time-domain data and reports events whose power exceeds a threshold, and a back end that removes RFI and looks for candidates for reobservation.

We distinguish two measures of sensitivity for such projects. Event sensitivity is the flux level above which an ideal signal (usually a constant-frequency sine wave) will be detected with probability above some threshold, and detection sensitivity is the flux level above which an actual signal (with drift, RFI, and nonzero bandwidth) will be found as a candidate, with probability above some threshold. Both depend on a number of factors, and either one can be greater. For the purpose of discovering ET signals, the detection sensitivity is the relevant measure. This is discussed in more detail in D. P. Anderson et al. (2025).

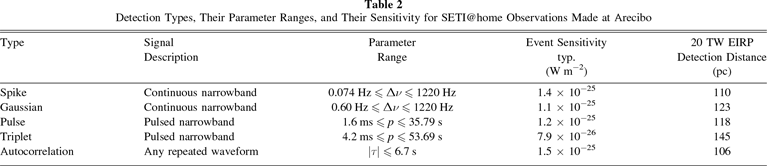

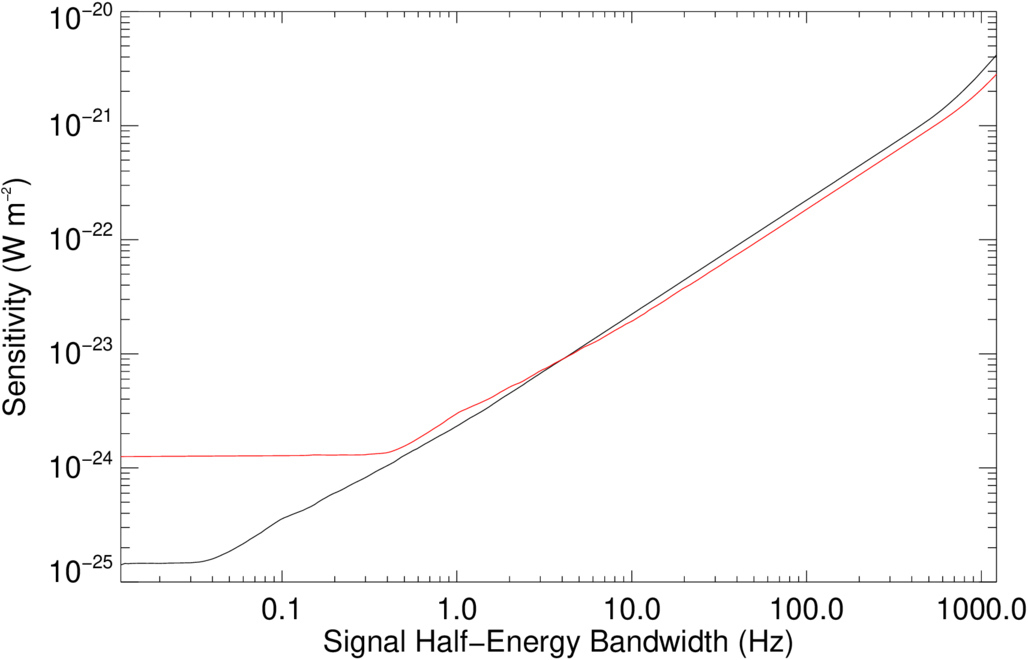

In this section, we provide the event sensitivity for the SETI@home analysis of data obtained at Arecibo. Sensitivity for observations at other telescopes will be provided in future publications.

5.3.1. Spike Sensitivity

5.3.2. Gaussian Sensitivity

5.3.3. Triplet Sensitivity

5.3.4. Pulse Sensitivity

5.3.5. Autocorrelation Sensitivity

SETI@home was launched in 1999 May, and for about a year, it received considerable worldwide media coverage. This produced a surge of volunteers, peaking at about 1 million active participants. After the media coverage subsided, the volunteer population gradually declined.

We developed, in collaboration with the BOINC project, a number of mechanisms designed to attract new volunteers and retain existing ones. Some of these mechanisms required administration. When possible, we used existing volunteers for these purposes:

• 1.

  Technical support for new volunteers was provided using online message boards; experienced volunteers answered questions posed by new volunteers. We also developed a system where one-on-one technical support was provided via Skype.

• 2.

  We operated message boards for volunteers to discuss science, computing, and other topics. We used volunteers to moderate these message boards, suppressing spam and “flame wars.”

• 3.

  We provided web-based “leader boards” listing the volunteers who provided the most computing power. This motivated some volunteers to run SETI@home on more computers, and in some cases to buy powerful, multi-GPU computers for the purpose of running SETI@home.

• 4.

  We created a system that allows volunteers to form teams, typically based on nationality, institution, or computer type. We added leader boards for teams. This motivated some volunteers to recruit friends and family to boost their team statistics.

Studies have shown that participants in volunteer computing and other forms of “citizen science” have several motivations (O. Nov et al. 2014; B. J. Strasser et al. 2023). These include competition and community, as well as support for science goals. The mechanisms listed above were designed to support these various motivations.

The pool of volunteered computers was varied (D. P. Anderson & K. Reed 2009; E. J. Korpela 2012). The computers had various processor types (Intel, ARM), bitness (32- and 64-bit), CPU features (such as SSE3 and AVX2), and number of cores. They had different operating systems (Windows, MacOS, Linux, Android) and different versions of these. Many computers had GPUs capable of general-purpose computing. These GPUs had different makers (NVIDIA, AMD, Intel), different models, and different driver versions.

Getting as much computing power as possible from a given computer typically required one or more versions of the client program: for example, a GPU version for that particular GPU model and a CPU version to use the remaining CPU time. We developed dozens of such versions, trying to fully exploit as wide a range of computers as possible. BOINC provides features that automatically select the best-performing versions for a given computer.

Volunteers assisted in these efforts. BOINC has a feature called “anonymous platform” that allows volunteers to use their own client versions. Volunteers used this to develop versions optimized for particular CPU features and to develop versions that use GPUs. In many cases, we eventually added these to the set of official versions. Volunteers also restructured many algorithms in the SETI@home client to improve their speed and numerical accuracy.

Results returned by volunteer computers may be incorrect for a variety of reasons: hardware errors due to overclocking and overheating, bugs in particular application versions, and, in some cases, hacking by volunteers trying to get credit for jobs not actually performed.

BOINC provides a mechanism for detecting incorrect results using replication. Each job is executed on two different computers, and the results are accepted only if they agree; otherwise, the job is run on a third computer, and so on until a consensus is reached. This mechanism worked well. However, different processor types and numerical libraries typically differ in the low-order bits of floating-point calculations, and these deviations accumulate in calculations such as DFT. Thus, in comparing the results of two replicas of a job, we tolerate a certain amount of variation. This depends on the parameter: for example, frequencies must agree within 0.1 Hz, while parameters like power must have a relative difference of at most 1%.

In its original form, replication resulted in a 50% loss in effective computing power. To reduce this overhead, the mechanism was refined so that computers that return several consecutive verified results are gradually exempted from replication. These trusted computers would still be randomly sent some replicated results as a check. If result verification failed either because of a mismatch, or because of values outside of the range of valid calculations, the computer would be marked as untrusted until it had returned a number of valid results. This reduced the overhead to a few percent. (See E. J. Korpela 2012 for a more detailed discription.)

We had to implement various server functions: web server, job scheduler, data splitter, file download and upload, database servers, and so on. At first, we divided these functions between three desktop computers. These were quickly overwhelmed, and we moved to a collection of dedicated server computers and network storage devices, eventually numbering 20 or so.

Initially, these servers were located at our research center, whose internet connection provided 100 Mbps in each direction. Our network traffic—primarily sending workunits—saturated that, and we had to rent a commercial 1 Gbps connection. Later, we moved our server complex to the UC Berkeley campus hosting facility, which provided ample network capacity.

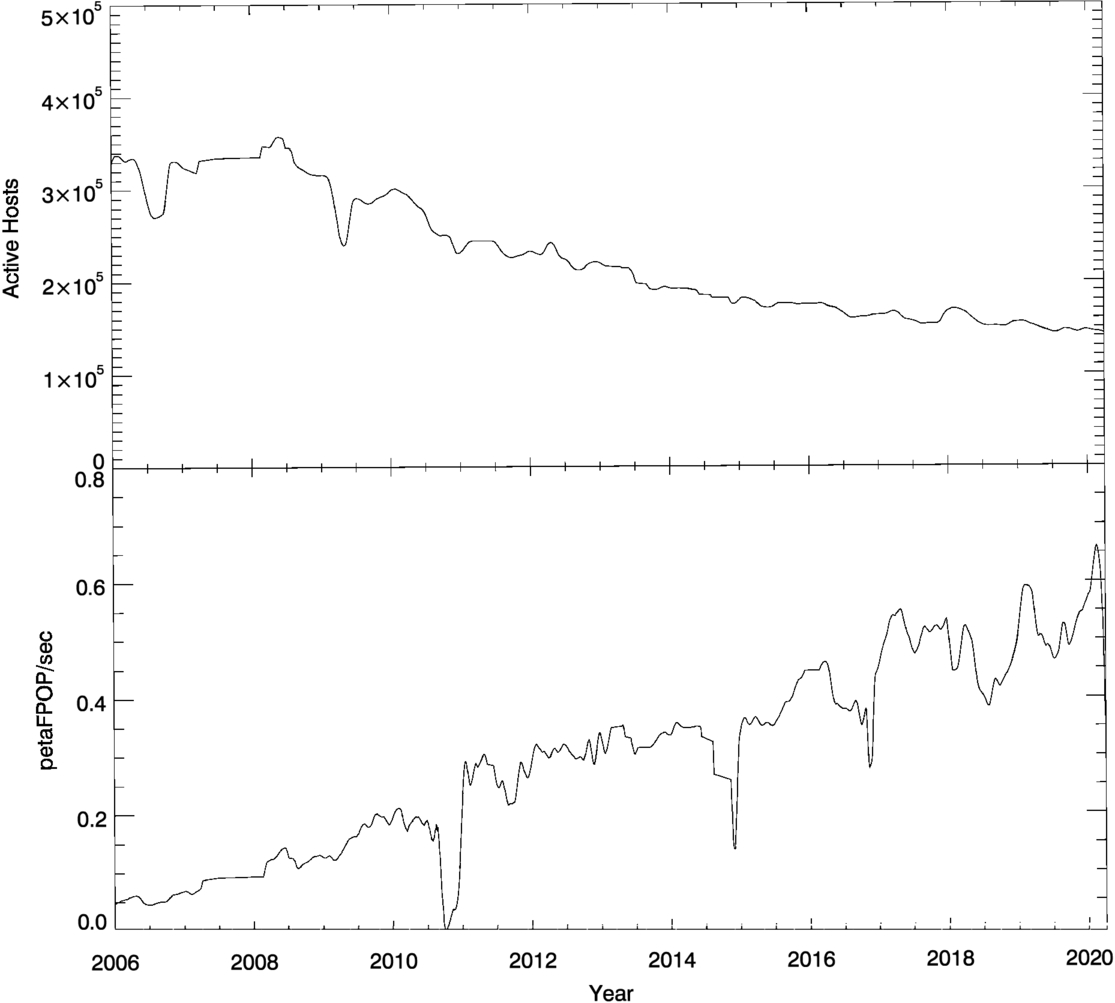

The computing throughput of SETI@home varied over time, as shown in Figure 7. This variation is due to several factors. Between 2006 and 2020, the number of computers actively participating decreased from 350,000 to 140,000. However, the average floating-point performance of the computers grew at a greater rate, due to increases in CPU clock rate and number of processors and (starting in about 2010) the introduction of GPUs capable of general-purpose floating-point computing at speeds 1 or 2 orders of magnitude faster than CPUs. Thus, the computing throughput grew from about 100 teraFPOP s^–1 in 2006 to 600 teraFPOP s^–1 in 2020. In total, SETI@home used roughly 6×10²³ floating-point operations.

In a typical workunit, about half the computing (in terms of floating-point operations) went to computing DFTs, and about half to the FFA for pulses. The time for other functions, such as Gaussian and triplet finding, was small in comparison.

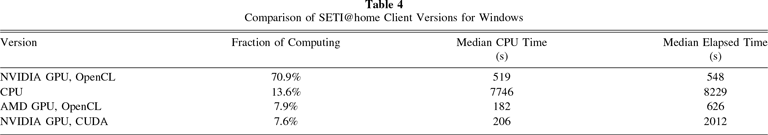

Table 3 breaks down computing power by operating system. Table 4 compares the major client versions for Windows. CUDA is a library for NVIDIA GPUs, while OpenCL is a cross-platform GPU library. For GPU versions, CPU time is typically less than elapsed time, because the CPU often has to wait for the GPU. On a given computer, BOINC chooses versions based on available hardware and software. On computers with GPUs, it typically runs both CPU and GPU versions in order to fully utilize the processing resources.
