Show HN: Streaming gigabyte medical images from S3 without downloading them

原始链接: https://github.com/PABannier/WSIStreamer

## WSI Streamer：云原生全玻片图像服务器 WSI Streamer 是一款专为存储在对象存储（如 S3）中的大型全玻片图像 (WSI) 设计的现代切片服务器。它通过按需流式传输切片来简化 WSI 查看，避免下载整个文件。安装简单，使用 Rust (`cargo install wsi-streamer`)，只需一条命令即可开始从 S3 提供服务。它原生支持 Aperio SVS 和金字塔 TIFF 格式，利用 HTTP Range 请求实现高效的切片传输。主要功能包括内置的 OpenSeadragon 基础查看器、生产级别的 HMAC-SHA256 身份验证和多层缓存。配置最少，依赖于命令行标志或环境变量。也提供 Docker 支持，方便部署。 WSI Streamer 提供 REST API 用于访问玻片、切片、元数据和缩略图。它专为可扩展性和易用性而设计，为 WSI 可视化提供精简的解决方案。 [https://github.com/PABannier/WSIStreamer](https://github.com/PABannier/WSIStreamer)

黑客新闻新 | 过去 | 评论 | 提问 | 展示 | 工作 | 提交登录展示HN：从S3流式传输千兆医疗图像，无需下载它们 (github.com/pabannier) 13点由 el_pa_b 1小时前 | 隐藏 | 过去 | 收藏 | 2评论 matthberg 19分钟前 [–] 看起来非常类似于如今网络地图的工作方式，特别是protomap文件[0]。我想知道是否可以在leaflet或其他前端地图库中添加一个shim层来查看医疗图像？很棒的工作！0: https://protomaps.com/回复 el_pa_b 9分钟前 | 父评论 [–] 谢谢！的确，数字病理学、卫星图像和地理空间数据共享许多计算问题：高效存储、快速空间检索/索引。我认为这应该可以实现。对于数字病理学，该领域与扫描仪供应商专有格式（SVS、NDPI、MRXS等）紧密相关。指南 | 常见问题 | 列表 | API | 安全 | 法律 | 申请YC | 联系搜索：

原文

A modern, cloud-native tile server for Whole Slide Images. One command to start serving tiles directly from S3.

# Installation (requires Rust, see alternatives below)
cargo install wsi-streamer

# On your local machine

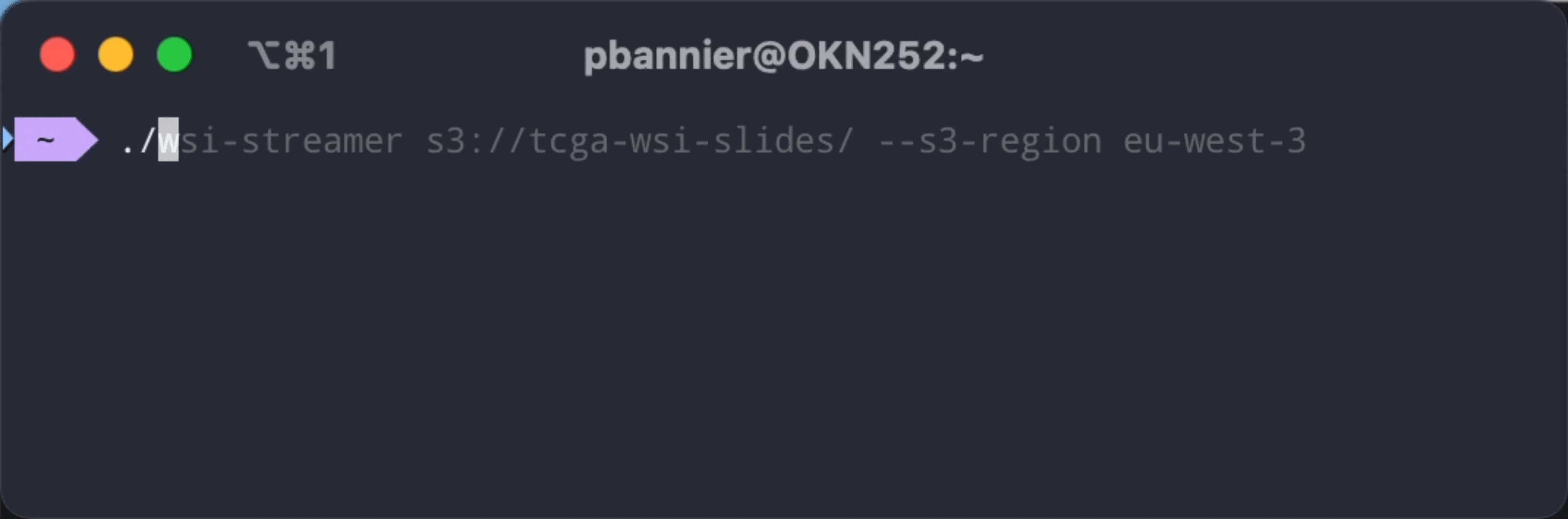

wsi-streamer s3://my-slides-bucket --s3-region eu-west-3

That's it. No configuration files, no local storage, no complex setup. Open http://localhost:3000/view/sample.svs in your browser to view a slide.

Whole Slide Images are large (1-10GB+) and typically live in object storage. Traditional viewers require downloading entire files before serving a single tile. WSI Streamer takes a different approach: it understands slide formats natively, fetches only the bytes needed via HTTP range requests, and returns JPEG tiles immediately.

Range-based streaming — fetches only the bytes needed for each tile, no local files
Built-in viewer — OpenSeadragon-based web viewer with pan, zoom, and dark theme
Native format support — Rust parsers for Aperio SVS and pyramidal TIFF
Production-ready — HMAC-SHA256 signed URL authentication
Multi-level caching — slides, blocks, and encoded tiles

Install from crates.io:

cargo install wsi-streamer

Or build from source:

git clone https://github.com/PABannier/WSIStreamer.git
cd WSIStreamer
cargo build --release

Or run with Docker:

# Pull from GitHub Container Registry
docker run -p 3000:3000 -e WSI_S3_BUCKET=my-bucket ghcr.io/pabannier/wsistreamer:latest

# Or use Docker Compose for local development with MinIO
docker compose up --build

# Serve slides from S3
wsi-streamer s3://my-slides

# Custom port
wsi-streamer s3://my-slides --port 8080

# S3-compatible storage (MinIO, etc.)
wsi-streamer s3://slides --s3-endpoint http://localhost:9000

# List slides
curl http://localhost:3000/slides

# Get slide metadata
curl http://localhost:3000/slides/sample.svs

# Fetch a tile (level 0, position 0,0)
curl http://localhost:3000/tiles/sample.svs/0/0/0.jpg -o tile.jpg

# Get thumbnail
curl "http://localhost:3000/slides/sample.svs/thumbnail?max_size=256" -o thumb.jpg

# Enable HMAC-SHA256 authentication
wsi-streamer s3://my-slides --auth-enabled --auth-secret "$SECRET"

# Generate signed URLs
wsi-streamer sign --path /tiles/slide.svs/0/0/0.jpg --secret "$SECRET" --base-url http://localhost:3000

The web viewer handles authentication automatically when enabled.

# Check S3 connectivity
wsi-streamer check s3://my-slides

# List available slides
wsi-streamer check s3://my-slides --list-slides

# Test a specific slide
wsi-streamer check s3://my-slides --test-slide sample.svs

All options can be set via CLI flags or environment variables:

Option	Env Var	Default	Description
`--host`	`WSI_HOST`	`0.0.0.0`	Bind address
`--port`	`WSI_PORT`	`3000`	HTTP port
`--s3-bucket`	`WSI_S3_BUCKET`	—	S3 bucket name
`--s3-endpoint`	`WSI_S3_ENDPOINT`	—	Custom S3 endpoint
`--s3-region`	`WSI_S3_REGION`	`us-east-1`	AWS region
`--auth-enabled`	`WSI_AUTH_ENABLED`	`false`	Enable authentication
`--auth-secret`	`WSI_AUTH_SECRET`	—	HMAC secret key
`--cache-slides`	`WSI_CACHE_SLIDES`	`100`	Max slides in cache
`--cache-tiles`	`WSI_CACHE_TILES`	`100MB`	Tile cache size
`--jpeg-quality`	`WSI_JPEG_QUALITY`	`80`	JPEG quality (1-100)
`--cors-origins`	`WSI_CORS_ORIGINS`	any	Allowed CORS origins

Run wsi-streamer --help for full details.

Endpoint	Description
`GET /health`	Health check
`GET /view/{slide_id}`	Web viewer
`GET /tiles/{slide_id}/{level}/{x}/{y}.jpg`	Fetch tile
`GET /slides`	List slides
`GET /slides/{slide_id}`	Slide metadata
`GET /slides/{slide_id}/thumbnail`	Thumbnail
`GET /slides/{slide_id}/dzi`	DZI descriptor

See API_SPECIFICATIONS.md for complete documentation.

Format	Extensions	Compression
Aperio SVS	`.svs`	JPEG, JPEG 2000
Pyramidal TIFF	`.tif`, `.tiff`	JPEG, JPEG 2000

Files must be tiled (not stripped) and pyramidal.

MIT. See LICENSE.

Issues and pull requests welcome. See CONTRIBUTING.md.
